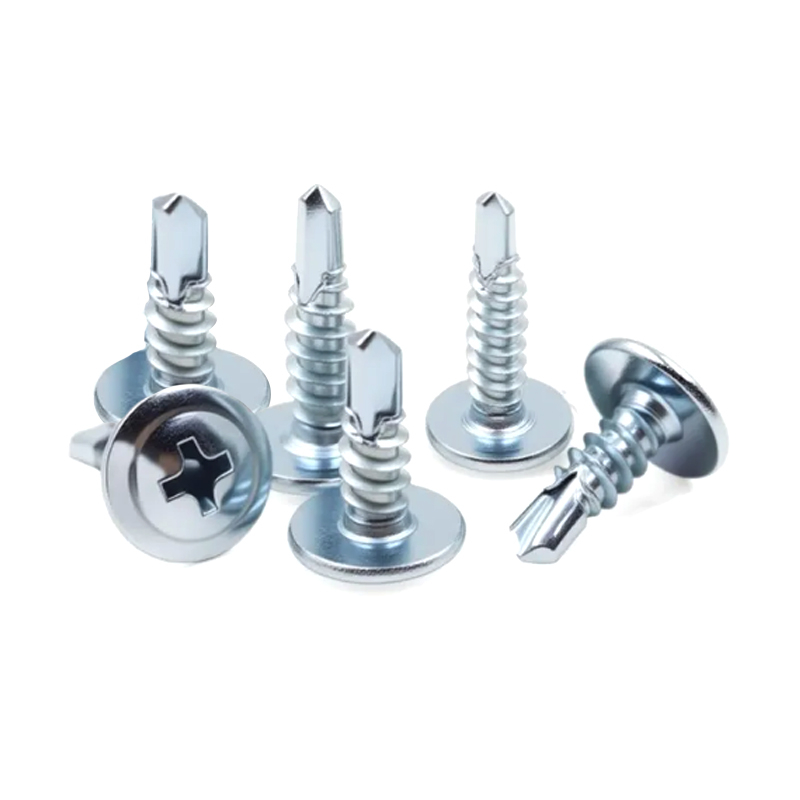

#8 x 3/4" Wafer Head Self Drilling Screws Manufacturer

Product Introduction

For superior fastening performance in sheet metal assemblies and architectural applications, our Wafer Head Self-Drilling Screws deliver an integrated fastening solution that combines drilling, tapping, and clinching in one operation. This design philosophy maximizes efficiency by eliminating secondary drilling steps, directly reducing labor time and project costs. Fabricated from hardened carbon steel and enhanced with our proprietary corrosion-resistant finishes, these fasteners are engineered for longevity. The distinctive low-profile wafer head delivers a secure, flush-mount finish that is both structurally sound and aesthetically refined, making it the definitive choice for modern construction and fabrication where precision and appearance converge.

Product Specifications

Material Composition: Medium/High Carbon Steel (Grade 1022A), subjected to a quenched and tempered heat treatment for optimal strength and ductility.

Surface Treatment: Standard corrosion protection is provided by electro-zinc plating. For severe service environments, optional hot-dip galvanized or Geomet® coatings are recommended.

Corrosion Performance: Base coating meets ASTM B633 standards. Enhanced finishes are validated to withstand over 500 hours in neutral salt spray (ASTM B117) testing.

Head Configuration: Flanged wafer head design, engineered for a low-profile finish and increased load-bearing surface area.

Drive Compatibility: Compatible with Phillips #3, Pozidriv #3, and Square Drive #3 bits. A Torx® drive variant (T-25/T-30) is available for superior torque transfer and reduced tool slippage.

Drill Point Geometry: Offered in three standard point styles: #2 Point (max. 14 ga.), #3 Point (max. 10 ga.), and #4 Point (max. 3/16" thickness).

Thread Design: Choice of standard fine thread or Hi-Lo thread configuration for versatile material engagement.

Shank Profile: Fully threaded from point to head for maximum grip.

Standard Sizing: Common diameters include #8, #10, and 1/4". Lengths range from 3/8" to 2" in standard inventory, with custom dimensions available for OEM projects.

Compliance Standards: Products are manufactured to meet or exceed the dimensional and mechanical requirements of ANSI, SAE, and ISO governing standards.

Key Features & Benefits

• Optimized Low-Profile Design: Achieves a nearly flush installation, eliminating protrusions for a cleaner aesthetic and reduced snag hazards in finished applications.

• Integrated Flange for Material Integrity: The broad head flange distributes clamping force evenly, effectively preventing pull-through and minimizing surface distortion on thin or pre-finished metals.

• Engineered Corrosion Defense: A scalable coating portfolio allows for precise specification based on environmental exposure, from general indoor use to harsh industrial or coastal settings.

• Unified Drilling & Fastening Action: The precision-hardened drill point creates its own pilot hole and formed threads, streamlining installation and ensuring perfect alignment for a stronger final joint.

• Cross-Material Fastening Versatility: Excellently suited for metal-to-metal connections and specifically designed to handle hybrid assemblies, such as attaching wood, plastic, or composite panels to metal frameworks.

Typical Applications

• Architectural Panel Systems: Securing metal cladding, composite panels, and exterior trim elements to structural steel or cold-formed steel framing.

• Mechanical Services Installation: Fabrication and mounting of HVAC ductwork, equipment screens, pipe supports, and acoustic enclosures.

• Fabricated Enclosures & Cabinetry: Assembly of electrical cabinets, control panels, machine guards, and metal furniture where a smooth finish is required.

• Interior Build-Outs: Fastening drywall tracks, metal studs, and ceiling grid components in commercial and residential lightweight steel framing.

• Mobile & Transportation Fabrication: Attachment of interior liners, exterior skins, and compartment assemblies in trailers, utility vehicles, and specialized mobile equipment.

Why Choose Our Wafer Head Self Drilling Screws?

• Engineered for Excellence: We combine premium materials with precision manufacturing to deliver a fastener that performs consistently under pressure.

• Simplify Your Workflow: Our all-in-one screw technology reduces your tooling needs, processing steps, and overall installation time.

• Build with Confidence: From coating to clinch, every screw is designed for reliable, long-term performance that protects your project's integrity.

• Technical Partnership: Our team provides more than product; we offer application expertise to help you select the optimal specification for performance, cost, and durability.

Commitment to Quality & Service
Our products are manufactured under a strict quality management system to deliver consistent performance and reliability. We are committed to being your trusted partner by providing solutions that enhance project efficiency, safety, and longevity. For detailed technical datasheets, volume pricing, or project-specific consultation, please contact our sales and engineering support team.
