| Length: | |
|---|---|
| Thread size: | |
| Quantity: | |
Product Introduction

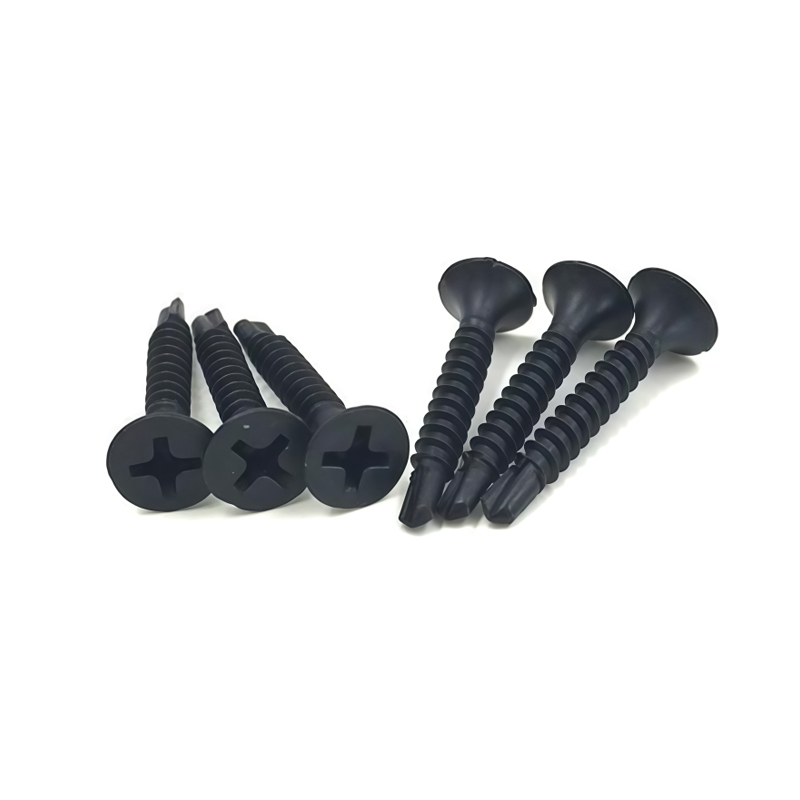

Our Self-Drilling Drywall Screws are engineered specifically for efficient and secure drywall installation onto metal studs and channels. By integrating a hardened self-drilling tip with sharp, fast-driving threads, these screws remove the need for pre-drilling pilot holes in steel framing—a key feature that directly reduces labor time and effort on the job site. The bugle head is precision-designed to seat cleanly and flush without tearing the drywall face paper, ensuring a surface ready for finishing. Protected by a durable phosphate or corrosion-resistant coating, each screw drives smoothly and maintains long-term performance. Ideal for interior walls and ceilings in both commercial and residential projects, this fastener delivers a reliable, high-performance solution that supports faster project completion and consistent installation quality.
Product Specifications
Material: Carbon Steel (Grade C1022A equivalent), case-hardened for point durability.
Finish / Coating: Standard Black Phosphate or Electro-Zinc Plated. Enhanced coatings are available for greater corrosion resistance.
Corrosion Resistance: Standard coatings provide protection suitable for interior environments.
Head Style: Bugle Head (Countersunk) designed for a flush finish.
Drive Type: Phillips #2, Pozidriv #2, or Square Drive #2. Torx® drive is optionally available.
Drill Point Style: Fine, hardened point (Style 1 or 2) for penetration into light-gauge steel (typically up to 20-ga. to 14-ga.).
Thread Type: Sharp, spaced twin-lead thread for fast driving and high pull-out resistance.
Shank: Fully threaded.
Standard Diameters: #6, #8 (approximate metric: 3.5mm, 4.2mm).
Standard Lengths: Common lengths include 1-1/4" (32mm), 1-5/8" (42mm), and 2" (50mm). Custom lengths can be produced.
Standards: Manufactured to comply with relevant industry specifications for drywall-to-steel fastening.
Key Features & Benefits
The Self-Drilling Drywall Screw is engineered with key performance features that address the primary demands of modern, steel-framed drywall installation. Its design integrates functionality and durability to provide a superior alternative to traditional fastening methods.A fundamental advantage is the integrated drilling capability, which allows the screw to penetrate light-gauge metal studs and tracks directly. This eliminates the separate, time-consuming step of pre-drilling pilot holes, leading to significant gains in on-site efficiency.
The fastener is meticulously optimized for the drywall itself. The bugle head is precisely shaped to countersink smoothly into the panel, creating a clean recess for joint compound without causing paper tear-out or core fracturing, ensuring a finish-ready surface.
Installation speed and ease are enhanced by a high-efficiency driving design. This includes sharp twin-lead threads for rapid penetration and a choice of drive recesses (Phillips, Pozidriv, or Square) that minimize cam-out, thereby reducing operator fatigue and boosting overall productivity.
Once installed, the screw delivers superior long-term performance. Its specially spaced thread profile ensures excellent grip and pull-out resistance within the drywall, securing a durable bond to the metal framework. Furthermore, a protective black phosphate or zinc coating safeguards against corrosion throughout construction and the product's service life, preventing rust stains and preserving the integrity of the installation.
Typical Applications
Interior Metal Stud Framing: Primary fastener for attaching drywall panels (gypsum board) to load-bearing and non-load-bearing steel studs and runners.
Suspended Ceiling Grids: Securing drywall ceiling panels to metal furring channels and hat channels.
Multi-Layer Drywall Systems: Installation of fire-rated or soundproofing assemblies requiring multiple layers of board.
Renovation & Remodeling: Fastening new drywall over existing metal lath or to metal door/window frames.
Why Choose Our Self-Drilling Drywall Screws?
Maximize Installation Speed: Eliminate the bottleneck of pre-drilling. Our screws drive directly into metal studs, allowing your crew to install board faster and complete projects sooner.
Ensure a Flawless Finish: The precision-designed bugle head creates a clean, consistent recess every time, minimizing callbacks for surface imperfections and reducing joint compound usage.
Invest in Job-Site Reliability: Experience fewer driver bit changes, reduced screw breakage, and consistent performance from the first screw in the box to the last, ensuring predictable workflow.
Rely on Expert Support: Our team provides guidance on the correct screw length, point type, and drive style for your specific metal gauge and drywall application, ensuring optimal results.
Commitment to Quality & Service
Every batch of our Self-Drilling Drywall Screws is manufactured under a strict quality management system to guarantee consistent performance, dimensional accuracy, and finish durability. We are committed to being your trusted partner by providing solutions that enhance project efficiency, safety, and finish quality. For detailed technical datasheets, volume pricing, or project-specific consultation, please contact our sales and engineering support team.
