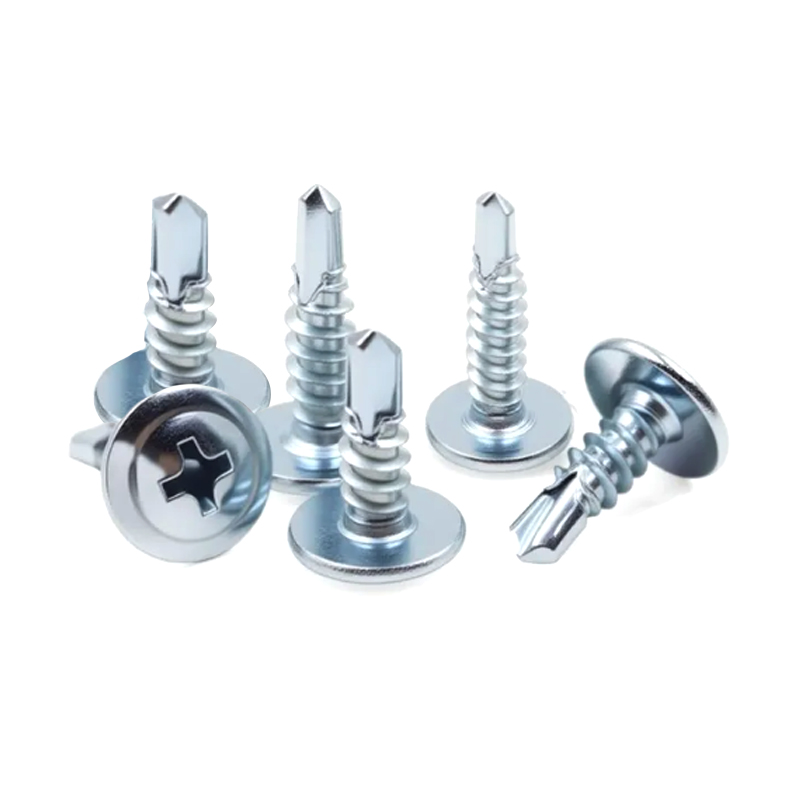

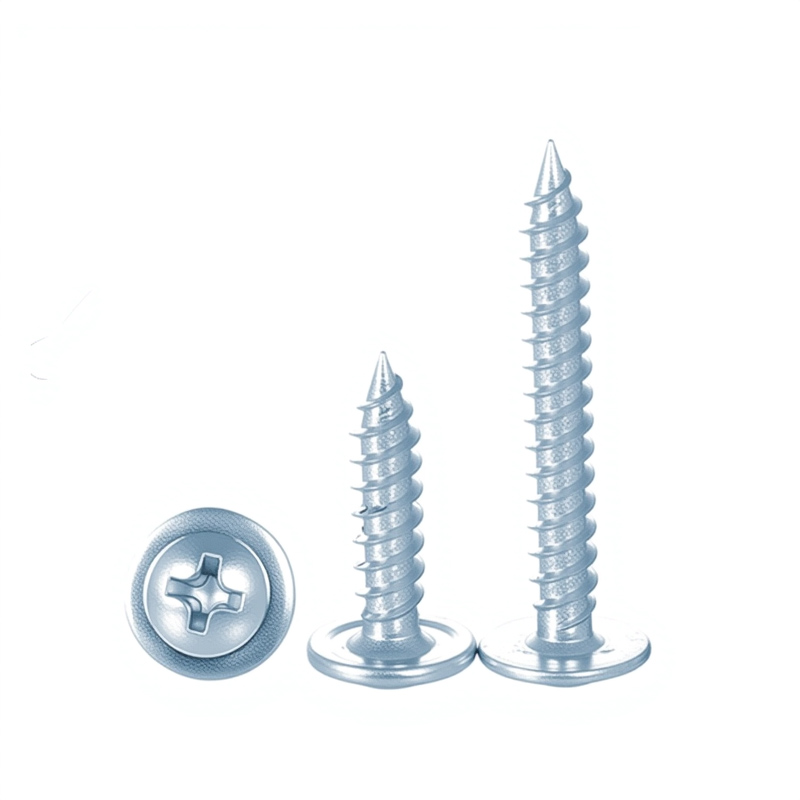

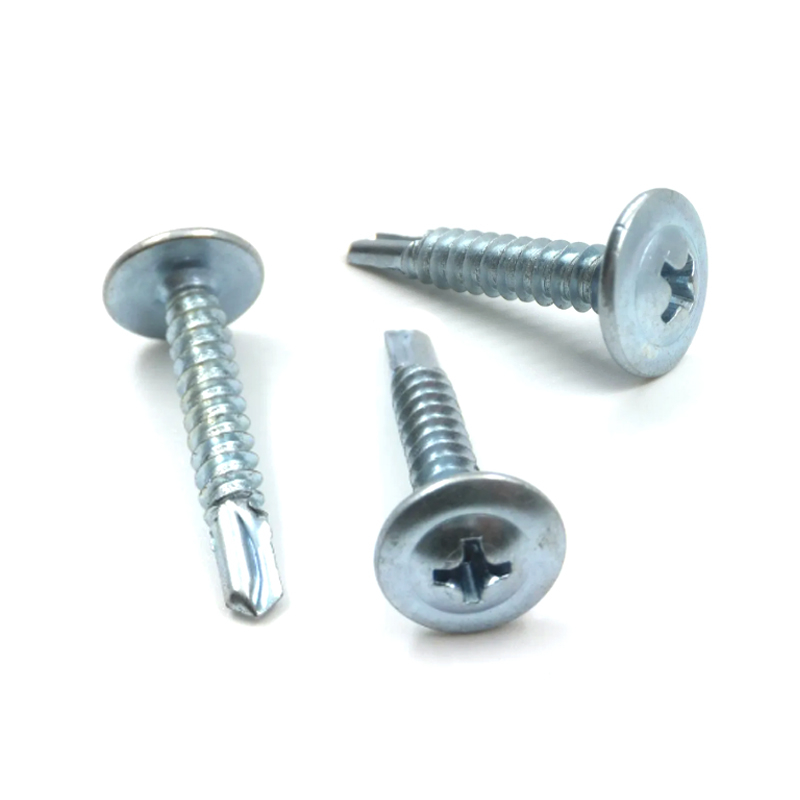

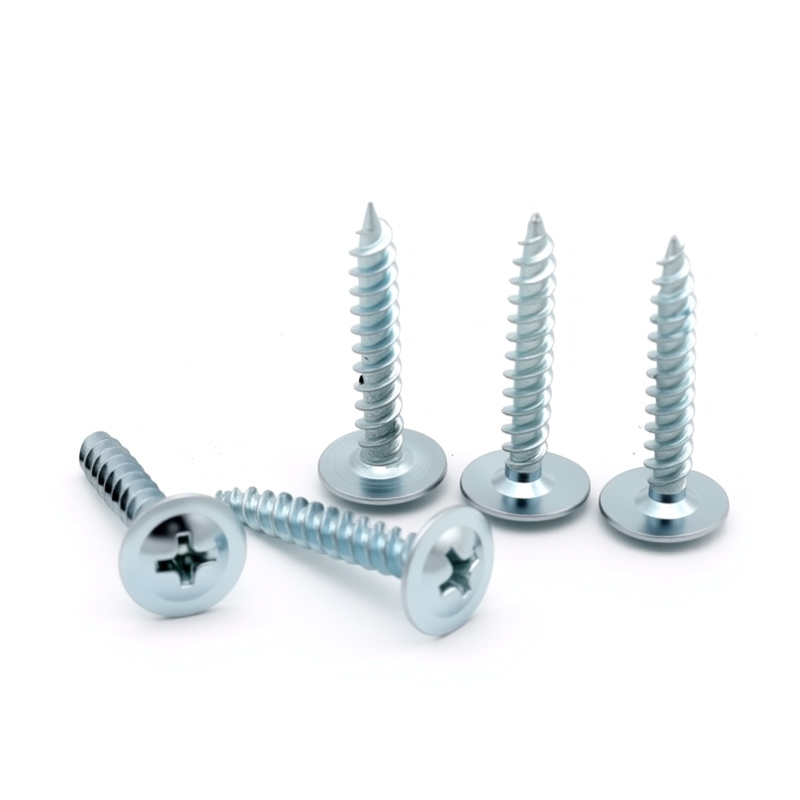

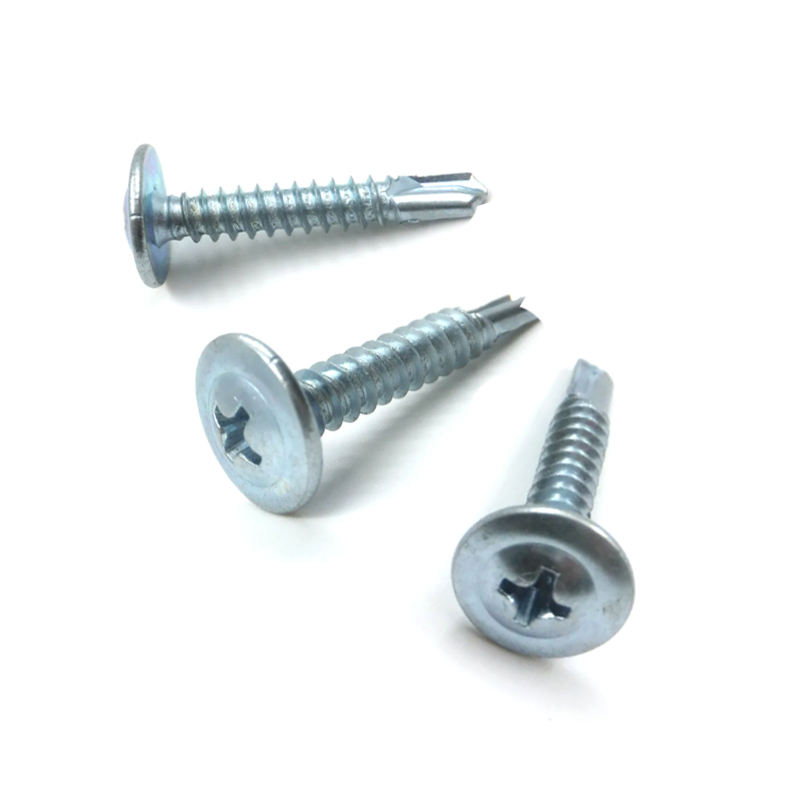

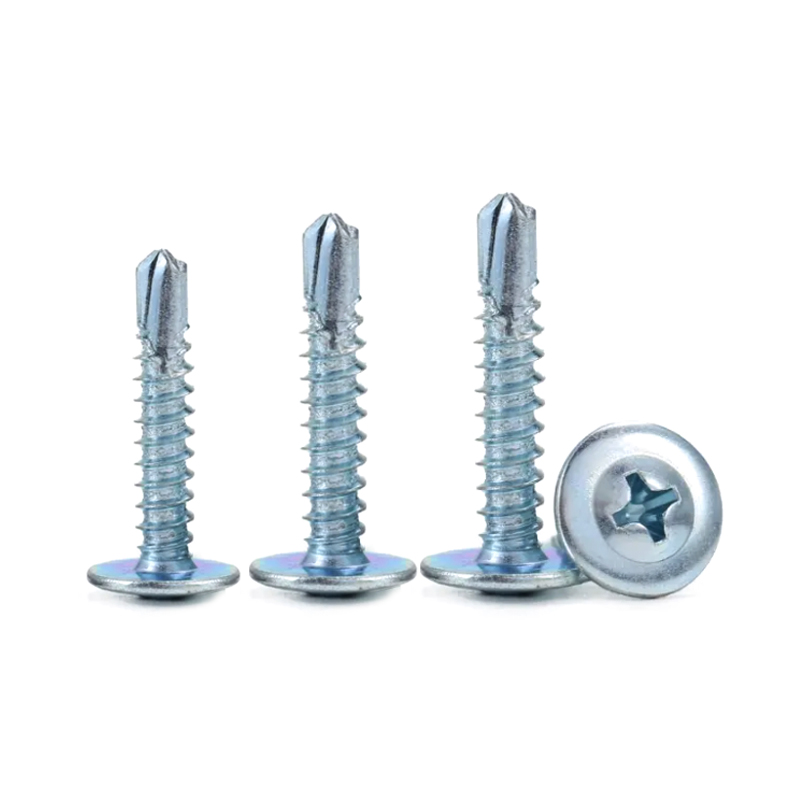

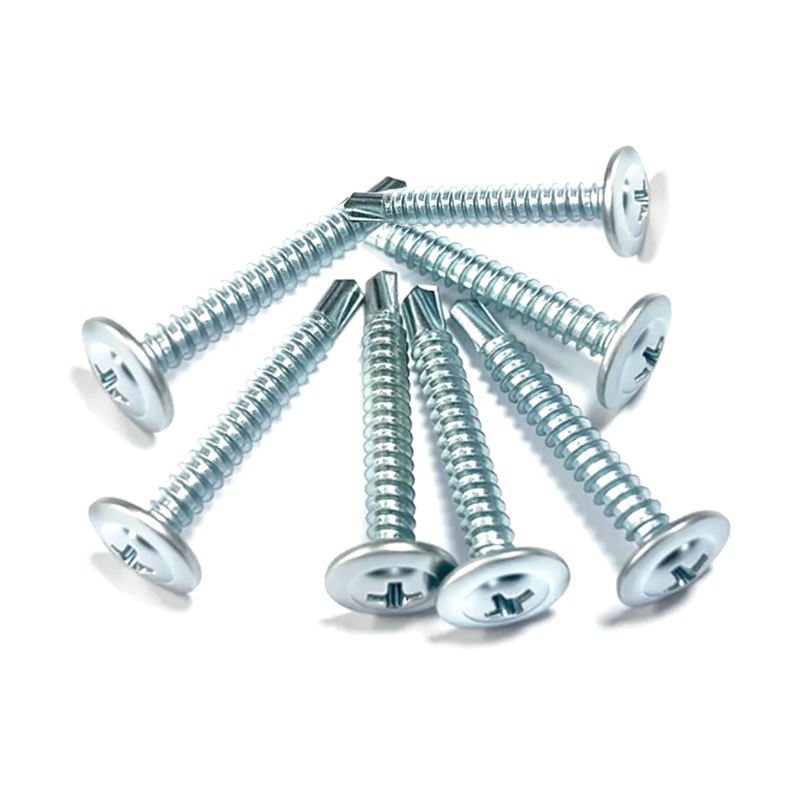

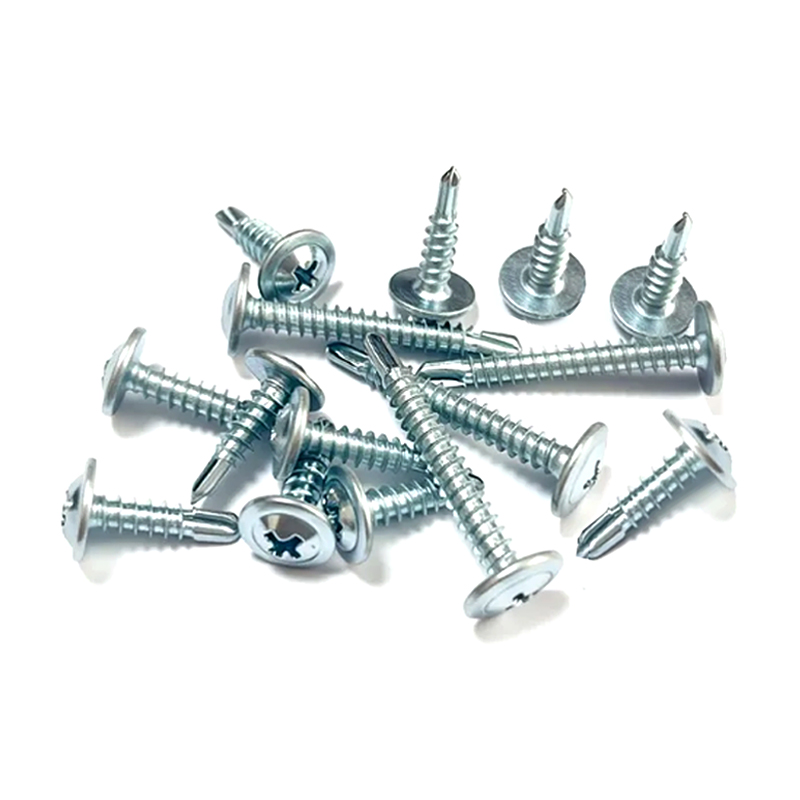

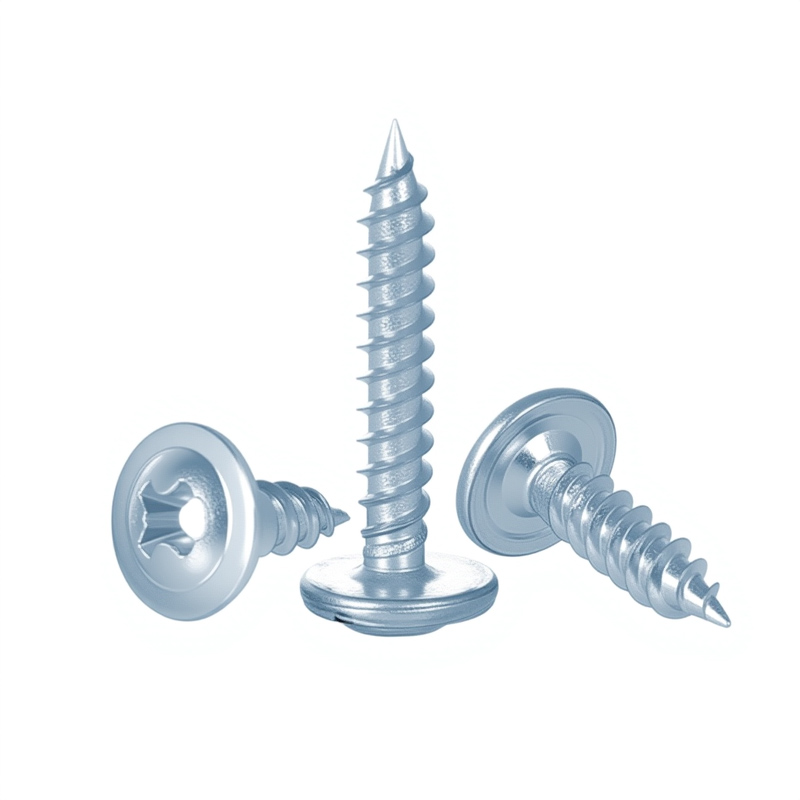

Customizable Wafer Head Self Drilling Screw for Construction Fastening

Product Summary
The wafer head self-drilling screw is a high-performance fastener engineered to deliver efficiency, strength, and a superior finished appearance in sheet metal and light-gauge steel applications. This product integrates the functions of drilling, tapping, and fastening into a single, seamless operation, thereby eliminating the need for pre-drilled pilot holes. This fundamental design advantage results in substantial reductions in labor time, tooling requirements, and overall installed cost. Manufactured from quenched and tempered carbon steel and protected by a selectable suite of advanced coatings, it is built for durability and long-term service life. The defining low-profile wafer head design provides a broad bearing surface to distribute clamping force effectively while achieving a near-flush finish, making it the preferred solution where mechanical performance and visual aesthetics are concurrently critical.

Core Technical Advantages

• Integrated Fastening Process: The hardened, precision-ground drill point creates its own pilot hole and forms mating threads in a single action. This streamlines assembly workflows, minimizes operator error from misalignment, and reduces on-site inventory requirements for separate drill bits.

• Optimized Load Management & Finish: The wafer head’s integral flange acts as a built-in washer, distributing clamping pressure over a significantly larger surface area. This effectively prevents pull-through, localized deformation, and surface dimpling on thin or pre-finished materials, while the low-profile geometry ensures a smooth, professional appearance.

• Engineered Corrosion Protection: A graduated system of finishes, from standard zinc plating to proprietary heavy-duty coatings, allows for precise specification based on environmental severity. This ensures predictable service life and reliability, from controlled indoor environments to demanding outdoor, industrial, or coastal applications.

• High-Strength Material Construction: Fabricated from heat-treated medium carbon steel, the screw achieves an optimal balance of hardness for drilling penetration and tensile strength for secure clamping and resistance to vibrational loosening and shear forces.

• Versatile Application Scope: Designed for universal fastening challenges, it excels in metal-to-metal connections and is equally effective in hybrid material assemblies, such as attaching wood, composite panels, or plastics to metal substructures.




Detailed Product Specifications

Material and Metallurgy

• Base Steel: Medium Carbon Steel, Grade 1022A or equivalent.

• Heat Treatment: Fully quenched and tempered to achieve a uniform core hardness, providing optimal strength and ductility.

Surface Finishes and Corrosion Resistance

• Standard Finish: Electro-Zinc Plating, compliant with ASTM B633.

• Enhanced Finishes: Hot-Dip Galvanized or proprietary zinc-flake coatings (e.g., Geomet®) are available for extreme environmental exposure, offering corrosion protection rated for 500 to 1000+ hours in neutral salt spray testing per ASTM B117.

Dimensional and Design Parameters

• Head Style: Low-profile Wafer Head (Type F) with integrated flange.

• Drive Type: Available in Phillips #3, Pozidriv #3, Square Drive #3, or Torx® (T-25/T-30). Torx drive is recommended for high-torque installation and reduced cam-out.

• Drill Point: Case-hardened for penetration. Selection is critical:

• #2 Point: For material up to 14-gauge steel.

• #3 Point: For material up to 10-gauge steel.

• #4 Point: For material up to 3/16" thick mild steel.

• Thread Type: Fine thread (machine screw) or Hi-Lo thread configuration.

• Shank: Fully threaded.

Standard Sizing and Compliance

• Nominal Diameters: #8, #10, 1/4" (Metric: M4, M5, M6).

• Standard Lengths: Ranging from 3/8" (10mm) to 2" (50mm). Custom lengths are available.

• Governing Standards: Products are manufactured to meet the dimensional and mechanical requirements of ANSI, SAE, and ISO specifications.

Primary Application Scenarios

• Architectural Cladding and Trim: Fastening of exterior metal wall panels, composite panels, fascia, soffit, and perimeter trim to structural steel or cold-formed steel framing.

• HVAC and Sheet Metal Fabrication: Assembly of ductwork, equipment housings, louvers, and vibration isolation brackets.

• Industrial and Electrical Enclosures: Construction of control panels, machinery guards, switchgear cabinets, and data center infrastructure.

• Appliance and Transportation Manufacturing: Securing interior and exterior panels in white goods, commercial appliances, trailer bodies, and bus interiors.

• Interior Build-Outs and Light Framing: Attachment of drywall metal studs, ceiling grid components, and partition walls in commercial construction.

Selection and Procurement Guidance
For optimal performance, correct specification is essential. Select the drill point size based on the thickness and type of the base metal being penetrated. Choose the coating system according to the specific environmental conditions the fastener will be exposed to over its service life. Consult technical datasheets for detailed torque and performance data.

Quality Assurance and Support
Our wafer head self-drilling screws are produced under a stringent quality management system to ensure batch-to-batch consistency in dimensions, mechanical properties, and finish quality. We provide comprehensive technical support to assist with product selection, specification review, and application engineering. Contact our team for detailed technical documentation, performance certifications, volume pricing, and project-specific consultation.
