In metal fabrication, construction, equipment manufacturing, and assembly work, self-tapping screws and self-drilling screws are widely used fasteners. Because both can create threads during installation without pre-formed internal threads, they are often confused in practice. However, there are clear differences between them in terms of structural design, working principles, and application scenarios.
This article provides a systematic and engineering-oriented explanation of the differences between self-tapping screws and self-drilling screws, along with practical selection guidance to help engineers, procurement professionals, and installers make informed decisions.

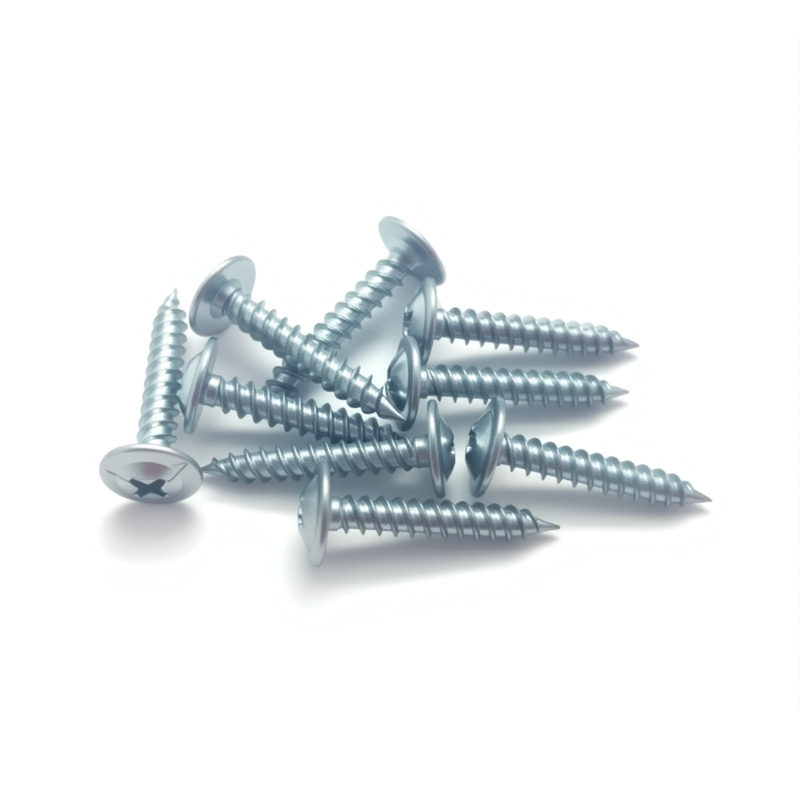

A self-tapping screw is a fastener that forms its own internal threads by cutting or deforming the base material as it is driven in.
In most applications, a pilot hole is required before installation. Once driven into the pre-drilled hole, the screw’s threads engage tightly with the material to create a secure connection.
From a mechanical perspective, self-tapping screws rely on thread engagement and friction between the screw and the material to achieve fastening strength. The quality of the connection depends heavily on material hardness and the accuracy of the pilot hole size.
Sharp, well-defined threads with cutting or forming capability
A pointed tip, but no drilling function
Various head styles available, such as pan head, countersunk head, and hex head, to suit different assembly requirements
Self-tapping screws are commonly used in:
Thin metal sheets
Plastic components
Wood-to-metal connections
Household appliances and electronic enclosures
When materials are relatively soft and pilot holes are available, self-tapping screws provide stable fastening and allow repeated disassembly.
A self-drilling screw is an advanced version of a self-tapping screw, distinguished by a drill-bit-shaped tip at the front.
This design allows the screw to drill the hole, form threads, and fasten components in a single operation, eliminating the need for pre-drilling.
During installation, the drill point cuts through the material to create the hole, after which the threads immediately engage with the hole wall to complete fastening. This significantly improves installation efficiency.
Drill-point tip with actual drilling capability
Deeper and more aggressive threads for fast thread formation
Often designed with hex washer heads or similar styles for high-speed power tool installation
Self-drilling screws are widely used in:
Steel structures
Metal roofing and wall panels
Light-gauge steel framing
Industrial equipment and heavy-duty assemblies
For metal-to-metal connections within specified thickness limits, self-drilling screws can greatly reduce labor time and installation steps.
The following comparison highlights the core differences between the two fastener types:
Comparison Aspect | Self-Tapping Screws | Self-Drilling Screws |
Pilot hole required | Usually yes | No |
Tip design | Pointed or cutting tip | Drill-bit tip |
Installation process | Drill hole + drive screw | Drill + tap + fasten in one step |
Installation efficiency | Moderate | High |
Suitable materials | Plastic, wood, thin metal | Metal sheets, steel structures |
Cost | Relatively lower | Slightly higher |
Tool requirements | Standard power tools | High-torque power tools recommended |
From an engineering standpoint, self-drilling screws are ideal for efficiency-driven, large-scale installations, while self-tapping screws offer better cost control and flexibility for precision assembly.
Plastic, wood, or thin metal sheets: Self-tapping screws are usually sufficient
Steel plates, metal studs, or structural steel: Self-drilling screws are preferred
As material hardness increases, drilling capability becomes more critical, making self-drilling screws the better option.
In prefabricated construction and large industrial projects, reducing installation steps directly lowers labor costs and construction time. In such cases, self-drilling screws provide clear economic advantages.
For small-batch assembly or precision equipment, self-tapping screws with pilot holes allow better control over alignment and fastening quality.
Self-drilling screws generally produce more uniform threads in metal, resulting in stable tensile and shear performance.
Self-tapping screws, on the other hand, are more suitable for applications where disassembly and maintenance are required.
In outdoor or high-humidity environments, surface treatment—such as zinc plating, stainless steel, or corrosion-resistant coatings—often has a greater impact on service life than whether the screw is self-tapping or self-drilling.
Proper material and coating selection is essential for long-term reliability.
A common misconception is that “self-drilling screws can completely replace self-tapping screws.” From a cost and applicability standpoint, this is not always the best choice.
Using self-drilling screws where drilling capability is unnecessary may increase costs without added value, while using self-tapping screws on high-strength metal may result in installation difficulties or thread failure.
The correct approach is to evaluate material type, structural requirements, and installation conditions comprehensively, rather than simply choosing the ‘more powerful’ fastener.
Although self-tapping screws and self-drilling screws may appear similar, they are designed for fundamentally different purposes and applications.
Self-tapping screws emphasize versatility and cost efficiency, while self-drilling screws focus on speed and installation convenience. A clear understanding of their structural principles and application limits is essential for achieving safe, reliable, and economical fastening solutions.
Whether in construction, equipment manufacturing, or industrial assembly, selecting the right type of screw is a critical factor in ensuring structural integrity and long-term performance.To learn more information about screws,you can visit our website:www.zxydfastener.com,or contact us by admin@tjzxjt.com and +86 15176702681 directly.
