Author: Site Editor Publish Time: 2026-03-25 Origin: Site
Blind rivets, with their unique installation method and efficient connection performance, have become indispensable fasteners in many working environments. They are particularly suitable for fixing scenarios where the back is inaccessible, thus offering significant advantages in applications where bolting from both sides is not possible. This article will detail the application scenarios and installation methods of blind rivets, as well as key considerations when selecting them.

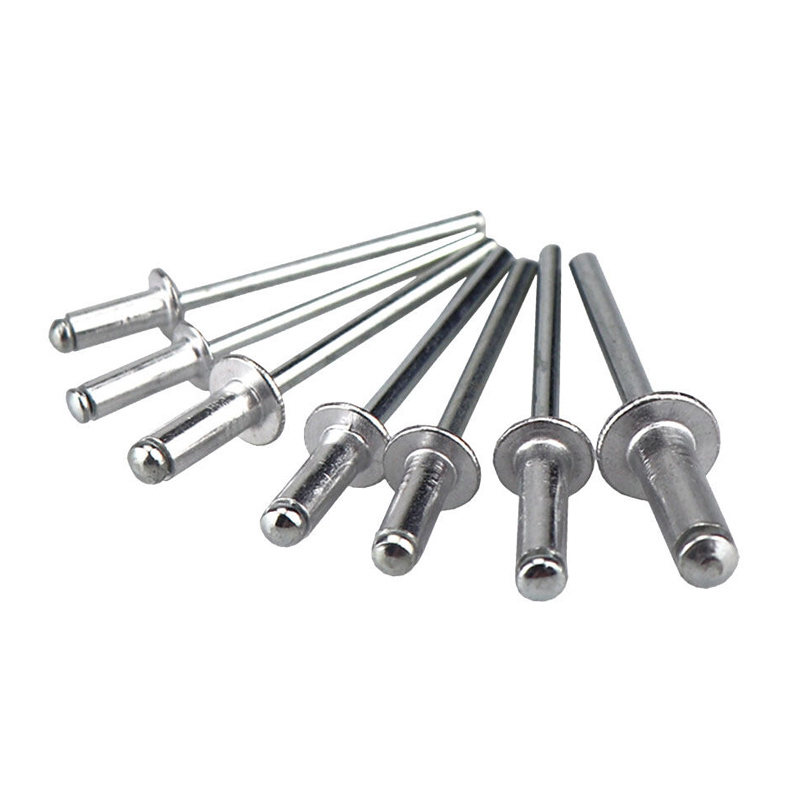

A blind rivet is a fastener that uses a riveting tool to apply tension to secure two materials. Unlike traditional bolts, blind rivet installation only requires operation on one side, eliminating the need for threading or using a nut on the other side of the connection. This makes blind rivets an ideal choice for structures with limited space and where access to the other side is difficult.
The working principle of blind rivets is to apply pressure to stretch the rivet, forming a "rivet head" at the other end, thereby firmly fixing two materials together. Specifically, when a blind rivet is installed, one end of the rivet is inserted into the material to be joined. Then, a special tool is used to apply tension, causing the other end of the rivet to expand into a wider section, forming a fixed connection.
Because blind rivets are operated from one side, their installation method makes them ideal for environments where the other side of the rivet cannot be directly accessed.
(1) Automotive Applications of Blind Rivets
In the automotive industry, blind rivets are widely used for various connection tasks in the body, chassis, and engine components. Especially during the body assembly process, blind rivets are widely used for fixing doors, roofs, interior panels, etc. These locations are often difficult to install using traditional bolts, especially for connecting interior and exterio components. Blind rivets can efficiently and stably complete these connection tasks.
(2) Advantages
Single-sided operation: No need to operate from the other side of the body, making installation more convenient;
Space saving: Blind rivets can effectively save space in areas with limited space;
Efficient connection: The installation process of blind rivets is fast, suitable for mass production.
(1) Aerospace Applications of Blind Rivets
In the aerospace industry, blind rivets are used to connect aircraft fuselages, doors, cabin equipment, and various accessories. Due to the complex structural design of aircraft, many connection points are difficult to directly contact. Blind rivets can solve this problem, making the aircraft manufacturing process more efficient while ensuring the safety of its structure.
(2) Advantages
High strength and lightweight: Blind rivets have high strength and low weight, suitable for the requirements of the aerospace industry;
Vibration resistance: Blind rivets have excellent vibration resistance, ensuring the stability of the aircraft under high-intensity operating environments.
(1) Construction Applications of Blind Rivets
Blind rivets are commonly used for lightweight structural connections in construction projects, especially at connection points where the other side is difficult to access. Whether connecting aluminum plates, metal plates, glass, plastics, etc., blind rivets can provide an efficient and safe fixing method.
(2) Advantages
Aesthetics: Blind rivets usually have a smooth appearance, suitable for decorative applications with high aesthetic requirements;
Adaptability: They can connect different types of materials, such as metals, plastics, and glass.
(1) Application of Blind Rivets in Electronics and Home Appliances
In the production of electronic products and home appliances, blind rivets are widely used to fix housings, internal circuit boards, decorative parts, etc. Because these products are typically designed to be compact, and many components cannot reach each other, blind rivets become an ideal fixing solution.
(2) Advantages
Miniaturization: Blind rivets provide effective connections in miniaturized equipment;
High Efficiency: The quick installation method makes the production process more efficient.
(1) Material Preparation
Before installing blind rivets, ensure that all connecting materials have been pre-treated and that the hole size meets the rivet requirements. Generally, the hole diameter should be slightly larger than the diameter of the blind rivet to ensure smooth insertion.
(2) Selecting the Appropriate Blind Rivet
Select the appropriate blind rivet based on the material thickness, hardness, and connection requirements. Different types of blind rivets (such as aluminum alloy, steel, copper, etc.) have different strengths and applicable ranges.
(1) Inserting the Rivet
Insert the blind rivet into the material to be joined, ensuring the rivet is aligned with the hole. One end of the rivet should be flat inside the hole, with the other end outside the material.

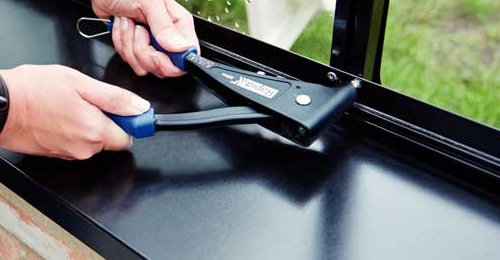

(2) Using a Riveting Tool
Use a dedicated blind rivet riveting tool to stretch one end of the rivet. The tool applies tension, causing the tail of the blind rivet to expand and securely fasten the material. Simultaneously, the other end of the rivet will form a rivet head, ensuring a secure connection.
(3) Checking the Rivet Installation Quality
After riveting, check the rivet's fixation. Ensure the rivet is fully extended and not loose. If the rivet is not fully extended or is loose, it may need to be reinstalled.
Although blind rivets are generally difficult to remove after installation, in some cases requiring removal, a blind rivet removal tool can be used. By applying reverse force, the rivet can be pushed back to its original shape, thus achieving removal. Care should be taken during removal to avoid damaging surrounding materials.
1. Material Selection: Different application scenarios may require different materials for connection, making the selection of the appropriate blind rivet material crucial. For example, aluminum alloy blind rivets are suitable for light-duty structural connections, while steel blind rivets are suitable for high-strength connections.
2. Load Requirements Selection: For connections subjected to heavy loads, it is recommended to choose blind rivets with high tensile strength, such as steel or stainless steel blind rivets. For light-duty applications, aluminum alloy or plastic blind rivets can be selected.
3. Environmental Conditions Selection: In some special environments, the selection of blind rivets needs to consider factors such as corrosion and temperature. For example, in humid or highly corrosive environments, blind rivets with corrosion resistance, such as galvanized or stainless steel blind rivets, should be selected.
Due to their unique installation method and wide range of applications, blind rivets have become an indispensable fastening tool in many fields such as industry, construction, and automotive. By understanding the working principle, application scenarios, installation methods, and how to select the right blind rivets, you can complete various connection tasks more efficiently and safely in actual operation. Choosing the right blind rivets can ensure the strength and durability of the connection, thereby improving the quality of the project and production efficiency.
