What Is The "self-tapping" Principle of Self-tapping Screws?

Self-tapping screws are widely used in sheet metal processing, plastic parts, electrical enclosures, and lightweight structure manufacturing. Their biggest difference from ordinary machine screws is that they do not require pre-machined internal threads; they form usable internal threads within the material itself. This design not only improves assembly efficiency and reduces production costs but also ensures connection stability.The term "self-tapping" does not rely solely on brute force; it is the result of a combination of physical mechanisms, including cutting, plastic flow, and friction locking.

I. Differences between Self-Tapping Screws and Ordinary Screws

Ordinary Machine Screws: Rely on pre-machined internal threaded holes for clamping.

Ordinary machine screwsrequire that the connected parts already have well-formed internal threaded holes. During tightening, the screw only provides axial clamping and does not alter the hole wall structure. Due to the high machining precision of the internal threads, the repeatability and disassembly of the connection are more stable, but the machining cost and procedures are more numerous. For structural components requiring high-strength connections, machine screws remain the preferred choice because of their higher thread engagement precision and stronger load-bearing capacity.

Self-tapping screws: These screws form internal threads and achieve clamping during the screwing-in process.

Self-tapping screws require localized damage or plastic deformation of the material in the initial screwing stage to form a meshing internal thread profile. After self-tapping, they not only provide clamping but also ensure long-term locking stability, thus requiring higher standards for thread structure and material hardness. Compared to machine screws, self-tapping screwseliminate the tapping process, making them more suitable for mass production and rapid on-site assembly.

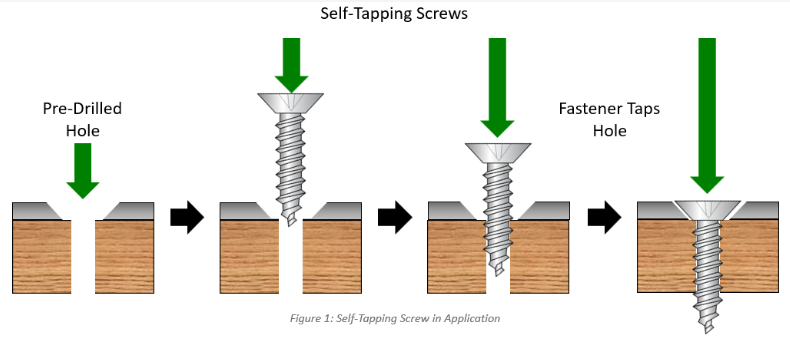

II. Self-tapping Mechanism of Self-Tapping Screws

The self-tapping process of self-tapping screws can be divided into three stages:

• Initial Cutting Stage:The screw tip contacts the hole wall, causing localized stress concentration, resulting in surface damage or plastic flow in the material. This stage is crucial for successful self-tapping; if the cutting angle, tip design, or material hardness is mismatched, the screw may slip or fail to penetrate.

• Intermediate Engagement Stage:The thread gradually forms a stable engagement with the material, and the hole wall profile is gradually shaped. At this stage, the screw's rotation not only advances the screw but also creates a continuous thread shape on the hole wall, achieving "internal and external thread engagement."

• Late Locking Stage:As the screw insertion nears completion, the connector enters its final locking state under clamping force. At this point, the thread has formed, and the screw primarily acts as a preload, stabilizing the connection system.

This process demonstrates that self-tapping screws do not simply rotate into the material; rather, a reliable connection is achieved through a combination of thread design, material flow, and friction. This is why self-tapping screws provide good vibration resistance and long-term stability in structural components.

III. The Importance of Thread Geometry Design

Thread design determines whether a self-tapping screw can be smoothly screwed into the material. Generally, self-tapping screws have a larger pitch and a more pronounced thread height, which facilitates material deformation and chip removal during insertion. A sharp thread leading edge ensures rapid insertion, reducing torque requirements. The thread's inclination angle, tooth profile angle, and crest shape all affect insertion efficiency and thread quality.

If the pitch is too small or the tooth profile too shallow, even with softer materials, the screw may slip or fail to form a stable internal thread. Especially on thin sheet materials, an excessively small pitch can lead to excessive deformation of the hole wall, resulting in an incomplete internal thread profile and affecting connection strength. Conversely, while an excessively large pitch makes insertion easier, it may reduce the contact area and decrease the frictional locking effect. Therefore, a balanced design based on the material and application is necessary.

IV. Core Comparison of Cutting-edge and Form-type Self-tapping Screws

Cutting-edge self-tapping screws: Form internal threads through a cutting edge.

Cutting-edge self-tapping screws typically have a cutting edge or groove designed at the tail or a specific location on the thread. When screwed in, it locally cuts the hole wall. The removed material is discharged as fine chips, and the hole wall gradually forms a regular internal thread profile, thus achieving engagement with the external thread. This method is suitable for thin sheet metal or hard materials because cutting-edge self-tapping screws have higher forming precision and a more stable connection.

Form-type self-tapping screws: Rely on the plastic flow of the material to form internal threads.

Form-fit self-tapping screwsare more common in plastics, aluminum alloys, or soft metals. They don't primarily rely on cutting; instead, they apply radial pressure to the hole wall through the thread, causing the material to plastically flow and conform to the thread shape. Because the material is deformed by compression rather than cutting, almost no chips are generated, resulting in a cleaner assembly process. Form-fit self-tapping screws perform better in vibration environments because the locking force generated by material springback continues to act on the thread side.

Choosing between cutting and form-fit self-tapping screws: The key depends on the material and the required force.

If a high-strength, more durable connection is required, and the material allows for cutting, cutting self-tapping screws are more suitable. Conversely, if the material is softer or requires less chip contamination, form-fit self-tapping screws are superior. Regardless of the type, the screw's hardness, surface finish, and hole diameter control directly affect the final connection quality.

V. Why do self-tapping screws "tighten more as you tighten"?

As self-tapping screws are screwed in later, the friction increases significantly because the contact area between the thread and the hole wall increases, and the material and screw undergo slight elastic deformation. Material springback generates axial preload, ensuring the screw remains stably clamped after screwing. Similar to ordinary screws, self-tapping screws also have a preload concept; the greater the preload, the stronger the friction between the connected parts, and the less likely the structure is to loosen.

Furthermore, as the screw depth increases, the normal pressure between the thread and the material gradually rises, leading to increased torque requirements. Therefore, many engineers use torque wrenches or automatic torque control devices to avoid overtightening, which could cause screw breakage or hole wall damage. Proper torque control not only ensures connection strength but also improves structural reliability and lifespan.

VI. The Criterion of Material Matching: Not All Materials are Suitable for Self-Tapping Screws

Self-tapping screws are not universal; material hardness and thickness directly affect performance. Materials that are too hard may cause the screw to break or fail to form threads; materials that are too soft may result in insufficient thread retention or stripping. Therefore, correctly matching the screw and material specifications is a prerequisite for ensuring the reliability of self-tapping screws.

In engineering practice, self-tapping screws are commonly used for thin sheet metal, plastic parts, and lightweight structural components. For thicker or higher-strength structural components, the method of tapping before tightening is still commonly used to ensure connection strength and stability. Especially in structures subjected to dynamic loads, selecting the appropriate type and size of self-tapping screws is crucial to preventing loosening, breakage, and other failures.

Self-tapping screws not only eliminate the tapping process but also improve assembly efficiency and consistency. In mass production, this translates to lower processing costs and fewer assembly errors, while also facilitating automated production. For equipment structures requiring frequent disassembly and assembly, self-tapping screws can also guarantee long-term locking performance, provided the material and screw specifications match and the installation process is correct.

Furthermore, self-tapping screws have a very wide range of applications, from appliance housings and automotive interior parts to industrial equipment housings. Their popularity as a mainstream fastening solution stems from their integration of machining and fastening functions, significantly improving production efficiency while maintaining reliable connections under proper design.To learn more information about self-tapping screws and their application,you can browser our website:www.zxydfastener.com .Our number and email are +86 15176702681 and admin@tjzxjt.com.Please contact us if you have any questions.
