Author: Site Editor Publish Time: 2026-03-11 Origin: Site
The screw head type is not merely a difference in appearance; it directly affects assembly methods, torque transmission, structural strength, and the final aesthetic effect. Different head types are designed considering factors such as installation space, tool compatibility, force direction, and whether concealment or aesthetics are required. This article will analyze common screw head types from the perspectives of head type classification, functional characteristics, and applicable scenarios, and provide practical selection advice.

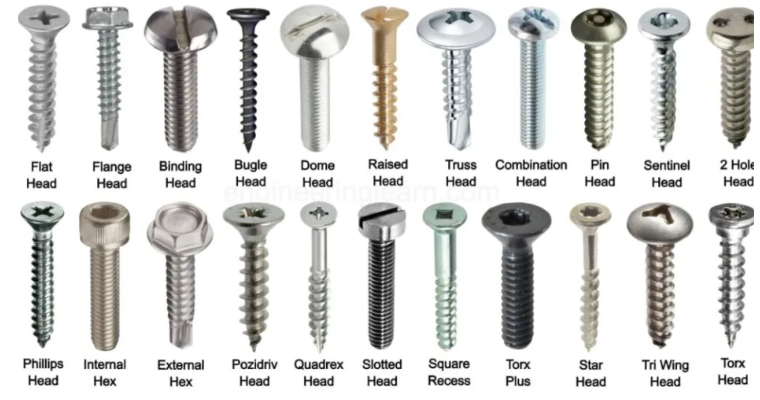

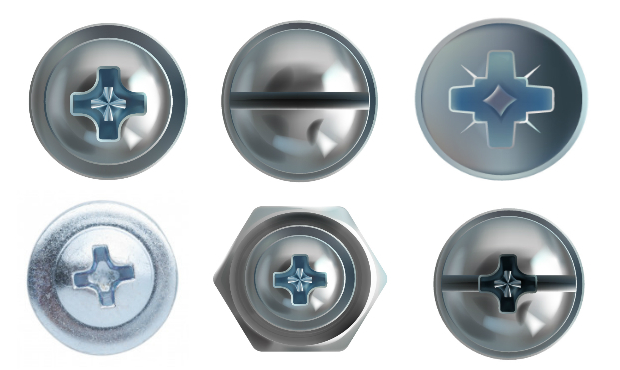

Screw head types can be classified as: flat head, countersunk head, semi-countersunk head, round head, pan head, hexagonal head, internal hexagonal head, Phillips head, square head, and washer-equipped head, etc. Different head types not only affect appearance but also determine whether flush with the surface after installation, ease of disassembly, and ability to withstand large torques.
In engineering design, three questions are typically considered when selecting a head type:
Is the installation space limited?
Does the screw need to withstand large torques or high tensile strength?
Is aesthetics important, or is it necessary to avoid protruding parts that could pose a safety hazard?
These three questions determine the final choice of screw head type.
The head of a flat head screw is tapered, and after installation, it can be flush with or slightly lower than the workpiece surface.
The most obvious advantage of this head type is its aesthetic appeal and lack of protrusion, making it suitable for assembly scenarios requiring a flat surface, such as furniture, woodworking structures, and metal panels. Because the head is flush with the surface, flat head screws reduce the risk of external friction and scratches, making them suitable for scenarios with frequent human-machine contact.
Counterhead hole machining requires higher precision. If the countersunk angle or depth is mismatched, the screw may warp or experience uneven stress. If used in load-bearing structures, it's also important to note that the smaller head bearing area may lead to localized indentations or stress concentration in the material.
The semi-counterhead is between a countersunk head and a round head, with a slightly protruding head, suitable for scenarios requiring a certain bearing area.
The advantage of the semi-counterhead is that its larger contact surface can distribute pressure and reduce indentations on the material surface, making it suitable for softer materials (such as plastics, wood, and thin metal sheets). Furthermore, countersunk heads screws are easier to position during assembly and are more convenient to disassemble.
They are more stable in high-torque structures because their thicker head and larger contact area allow them to withstand higher torque without easily being damaged. Compared to countersunk heads, countersunk heads are more suitable for connection scenarios requiring repeated disassembly and assembly or with more demanding structural requirements.
Round head screws have a hemispherical head with a smooth appearance and are commonly used in mechanical equipment, woodworking structures, and decorative connections.
Round head screws are stable under torque, and their larger head height makes them suitable for structures that do not require a flat surface. Their advantages include easy installation and high strength, making them suitable for connecting thicker materials or scenarios requiring strong clamping force.
The disadvantage is that the head protrudes relatively high, making them unsuitable for structures requiring a flat surface or prone to friction. Especially in areas requiring sliding on a flat surface or human contact, round head screws are prone to scratching or jamming, therefore they are typically used in internal structures where appearance and feel are not affected.
Pan head screws have a flat and slightly higher head with a larger contact area, making them suitable for thin plates or structures requiring strong clamping force. Pan head screws, with their pan-like head shape, provide a larger force-bearing area, distributing the screw's pressure on the material surface and reducing the risk of deformation or breakage. Therefore, they are very common in electronic equipment, thin metal sheets, and plastic parts.
Pan head screws are typically used in connections requiring high stability; while their appearance is striking, their structure is more reliable. If a flat appearance is desired, pan heads are not suitable, but in functional connections, they are often the more appropriate choice.
Hex head screws can be tightened with a wrench or socket wrench and are suitable for structural connections requiring high torque.
The advantage of hex heads lies in their large contact area and stable torque transmission, making them suitable for high-strength applications such as machinery, steel structures, and engineering installations. Because hex heads can withstand higher torque, they are more reliable in heavy-duty connections.
However, hex head screws have a larger head size, requiring more installation space and are not suitable for confined spaces or products with high aesthetic requirements. If space is limited, consider internal hex or other more compact head types.
Hex socket head screws are driven by an Allen wrench and are suitable for structures requiring high torque in confined spaces.
The biggest advantage of hex socket head screws is their space-saving design and high torque transmission efficiency. Many industrial equipment and precision instruments use hex socket head screws because they can be installed in tight spaces while reducing the risk of tool slippage.
Hex socket head screws are also commonly used in situations where aesthetics are important or protruding parts need to be avoided, as their heads are typically small and can be countersunk to be flush with surfaces. During installation, care must be taken to ensure the tool axis is aligned; otherwise, stripping or damage to the screw head is likely.
Phillips head screws are suitable for automated assembly and rapid installation because the screwdriver is easier to align and provides stable torque.
The design of the Phillips head allows the screwdriver to remain positioned during rotation, reducing the possibility of slippage, making it very common in mass assembly. Phillips head screws are used very frequently, especially in electronics, home appliances, and furniture assembly.
However, Phillips head screws are prone to cam-out at high torque, leading to screw head damage or insecure installation. Therefore, in high-strength structures, head types such as internal hexagonal or hex head screws, which are more suitable for withstanding high torque, are usually chosen.
Square head screws have an older design but still have value in woodworking and traditional structures.
The advantages of square heads are their large bearing surface, strong torsional resistance, and resistance to tool slippage. They are often used in connection scenarios requiring high torque or long-term stability, especially in woodworking structures, older machinery, or situations requiring manual tightening.
However, square head screws have relatively low installation efficiency and require specialized tools or matching wrenches. In modern structures, hexagonal or internal hexagonal heads are more commonly used instead of square heads because they offer greater tool versatility and are better suited for automated assembly.
Washer head screws form a larger contact surface around the outer edge of the head, similar to a built-in washer.
This design distributes pressure over a wider area, reducing indentation on thin or soft materials. Especially in plastic parts or thin metal sheets, washer heads improve connection stability and reduce the risk of material breakage or deformation.
It also reduces the need for matching washers, simplifying the number of parts and assembly processes, making it very common in home appliances, furniture, and electronic equipment. Its structure is better suited for stability requirements under conditions of high shear force and vibration.
1) When a flat appearance is required or to avoid protrusion, prioritize countersunk or flat head screws. They keep the structural surface flat, reducing the risk of friction and scratches, and are suitable for panels, furniture, decorative parts, etc.
2) When high torque or load-bearing capacity is required, prioritize hex head or socket head cap screws. They offer more stable torque transmission and are suitable for mechanical equipment, steel structures, and heavy-duty connections.
3) In confined spaces or for automated assembly, Phillips head and socket head cap screws are more suitable. Phillips head screws are better suited for rapid assembly, while socket head cap screws are better suited for confined spaces and high torque requirements.
4) When connecting softer materials or thin sheet structures, pan head or washer-equipped heads reduce indentation and material damage while improving connection stability.
The screw head type not only affects the appearance but also determines the assembly method, torque transmission, and connection reliability. Choosing the right head type can effectively avoid problems such as assembly difficulties, stripped threads, localized indentations, or structural loosening.If you still have some unresolved questions about screw selection, consulting us by +86 15176702681 and admin@tjzxjt.com,our technical experts will provide tailored advice based on your specific application scenarios.And our website is www.zxydfastener.com ,you can learn more about us here.
