Screws are among the most widely used fasteners in mechanical manufacturing, construction, furniture assembly, and daily maintenance. Although their structure is relatively simple, even small mistakes during installation can lead to joint failure, structural deformation, or serious safety hazards. This article systematically analyzes common screw installation mistakes from an engineering perspective and provides practical, scientifically grounded solutions to help improve assembly quality and long-term reliability.
Overtightening is one of the most frequent installation mistakes. When a screw is tightened beyond its designed torque range, excessive tensile and shear stress is applied to the threads. This often results in stripped threads, fractured screw heads, or deformation of the clamped components. In softer materials such as aluminum alloys or plastics, overtightening can easily crush the material around the threads, permanently weakening the joint.
To prevent this issue, torque-controlled tools such as calibrated torque wrenches should be used instead of relying on manual force. Torque values must be selected according to screw size, material strength, and application standards. For soft or brittle materials, washers or load-distribution plates should be added to reduce localized stress. In mass production environments, automatic torque-controlled fastening systems are recommended to minimize human error and ensure consistent tightening quality.
Insufficient tightening torque is another common problem, particularly in manual or high-speed assembly operations. Although the screw may appear fully tightened, the actual preload may be below the design requirement. As a result, vibration, cyclic loads, or thermal expansion can gradually loosen the joint, causing noise, misalignment, or even component detachment. Over time, repeated micro-movements can also wear down the contact surfaces, reducing structural stability.
The most effective solution is to implement a torque management process. Critical fasteners should always be tightened using torque wrenches and verified against specified torque values. In vibration-prone environments, additional anti-loosening measures such as spring washers, nylon-insert lock nuts, thread-locking adhesives, or double-nut configurations should be used. Regular inspection and maintenance are also essential, especially for equipment operating under dynamic or outdoor conditions.
Choosing an inappropriate screw length can significantly compromise joint safety. Screws that are too long may penetrate through the base material, creating sharp protrusions that pose safety risks or interfere with adjacent components. Conversely, screws that are too short fail to achieve sufficient thread engagement, reducing load-bearing capacity and increasing the risk of pull-out under tensile or shear forces.
To avoid this issue, the total thickness of the assembled components, including washers and surface coatings, should be accurately measured before selecting screw length. As a general guideline, the thread engagement depth in metal should be at least 1.5 to 2 times the nominal screw diameter, unless otherwise specified by design standards. For high-load applications, threaded inserts or longer bolts may be used to enhance thread engagement and overall joint strength.
Thread damage is a frequent cause of assembly failure, particularly in applications involving repeated installation and removal. Typical symptoms include slipping during tightening, sudden loss of resistance, or inability to achieve final torque. These issues may arise from oversized holes, poor tapping quality, burrs inside the threaded hole, or an improper hardness match between the screw and the base material.
Effective prevention starts with ensuring clean, properly machined threads. Threaded holes should be inspected and cleaned before installation, and damaged threads should be repaired using re-tapping tools or thread repair inserts. For components that require frequent maintenance, steel thread inserts or helicoils are strongly recommended, as they significantly improve durability and prevent premature thread wear in softer base materials.

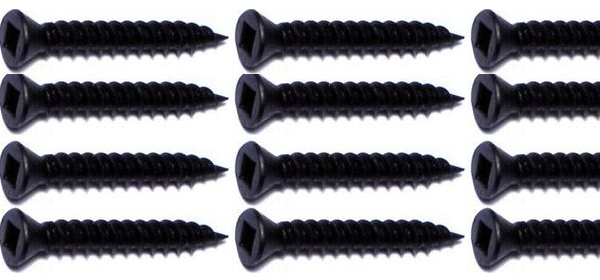

Many screw failures are not caused by installation errors but by improper material selection. For example, using standard carbon steel screws in humid, marine, or chemically aggressive environments often leads to rapid corrosion. In chloride-rich environments, high-strength carbon steel screws are particularly susceptible to stress corrosion cracking, which can result in sudden and unexpected failure. Additionally, direct contact between dissimilar metals may cause galvanic corrosion.
To address these risks, screw material and surface treatment must be selected based on the operating environment. Stainless steel, nickel-plated, zinc-plated, or specialty alloy screws are recommended for corrosive conditions. In high-risk applications, protective coatings and sealants should be used to enhance corrosion resistance. When dissimilar metals are unavoidable, insulating washers or barrier layers should be introduced to reduce galvanic effects.
In assemblies with multiple fasteners, tightening screws in an improper sequence can lead to uneven load distribution, surface distortion, or stress concentration. Tightening all screws sequentially from one side often causes the mating surfaces to warp or tilt, especially in large or thin components. This problem is particularly critical in sealing applications, where uneven pressure may lead to leakage or premature failure.
The correct approach is to use a symmetrical, cross-pattern tightening sequence. All screws should first be pre-tightened to a low torque level, followed by gradual increases until the final torque value is reached. This method ensures uniform contact pressure and minimizes deformation. For critical structures, standardized assembly procedures should be documented to ensure consistent installation quality across different operators.
Hole misalignment is a common challenge in practical assembly, especially when machining, stamping, or welding tolerances are not well controlled. Misaligned holes make screw insertion difficult and often lead installers to force the screw into place. This practice can introduce bending stress, uneven loading, or cracking in the connected components, ultimately reducing fatigue life and structural reliability.
Preventive measures include improving manufacturing accuracy and using alignment fixtures during assembly. Guide pins or locating dowels can help ensure proper positioning before screw installation. For components subject to thermal distortion, slotted holes or adjustable fasteners may be used to accommodate dimensional changes. Installers should never force screws into misaligned holes and should inspect components immediately if resistance is encountered.
Temperature changes can significantly affect screw joints, especially when fasteners and base materials have different coefficients of thermal expansion. In high-temperature environments, thermal expansion may reduce preload and cause loosening, while in low-temperature conditions, contraction may increase stress and lead to cracking or material failure. These effects are particularly noticeable in outdoor equipment and high-temperature industrial systems.
To mitigate thermal effects, appropriate materials and fastening strategies should be selected based on operating temperature ranges. Spring washers, Belleville washers, or elastic fastening elements can help maintain preload despite temperature fluctuations. During the design phase, thermal expansion calculations should be incorporated, and sufficient allowances should be made to prevent excessive tightening or loosening caused by temperature variation.
Although screws may appear simple, improper installation can lead to serious performance and safety issues. By controlling tightening torque, selecting appropriate materials, ensuring sufficient thread engagement, following correct tightening sequences, and accounting for environmental and thermal factors, the reliability and durability of screw joints can be significantly improved. We hope this guide helps you identify common installation mistakes and implement effective solutions in your applications.Besides，if you are looking for high-strength fasteners,you can visit our website:www.zxydfastener.com.Please contact us by admin@tjzxjt.com or +86 15176702681 if you need.
