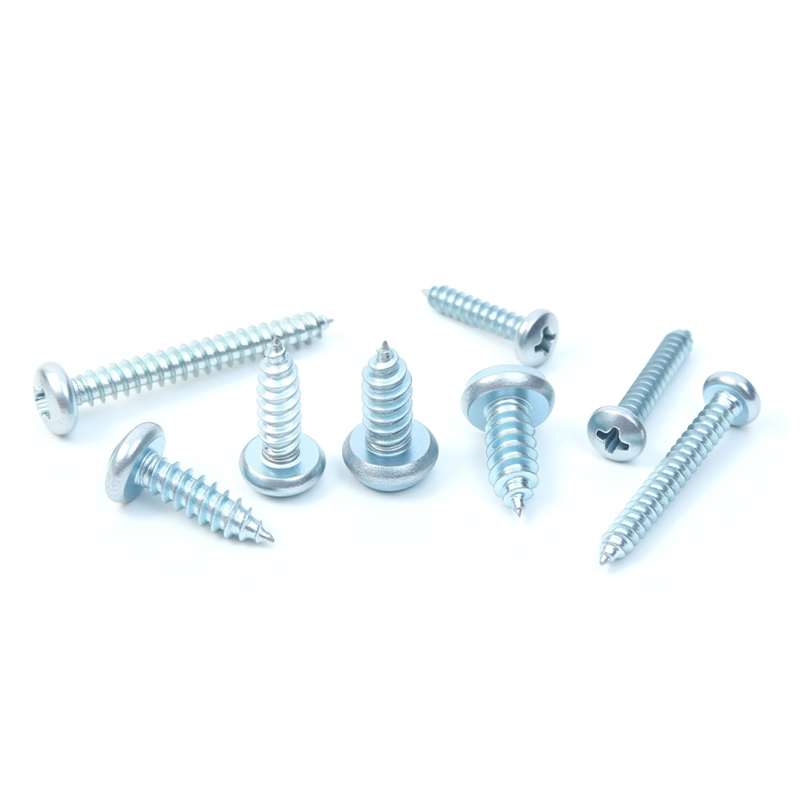

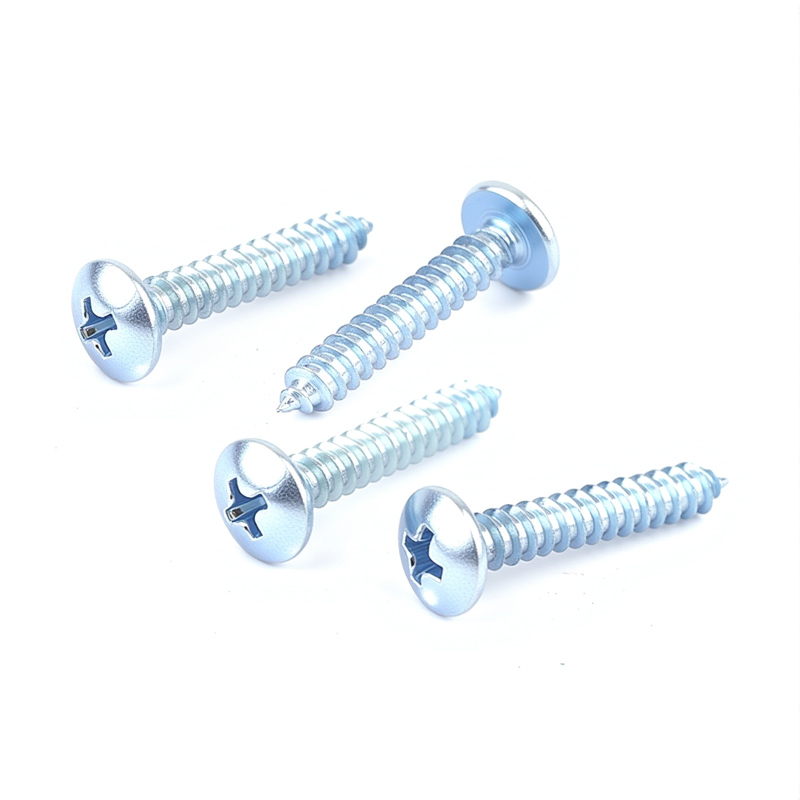

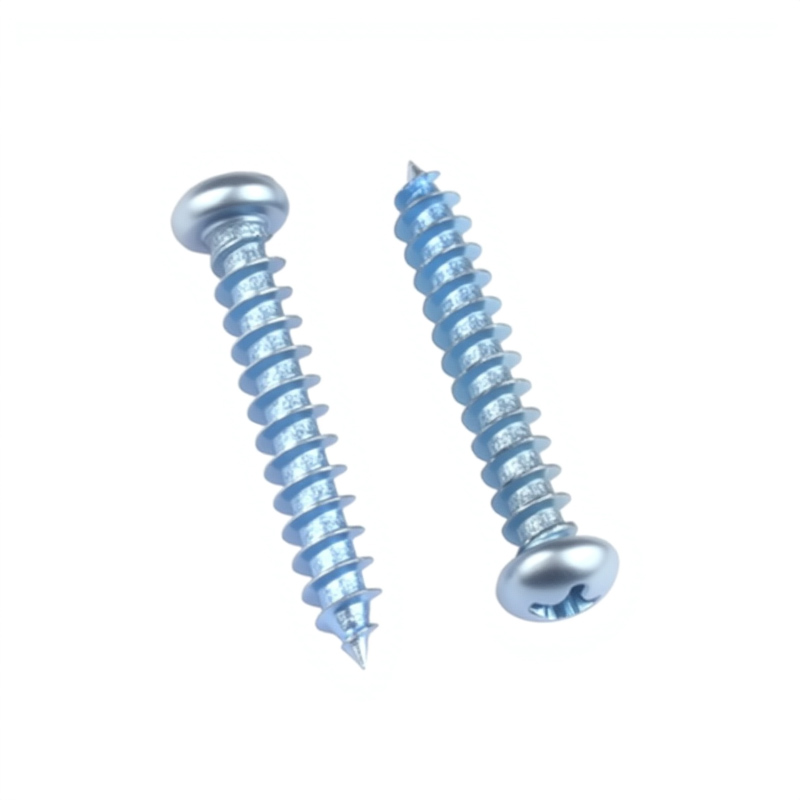

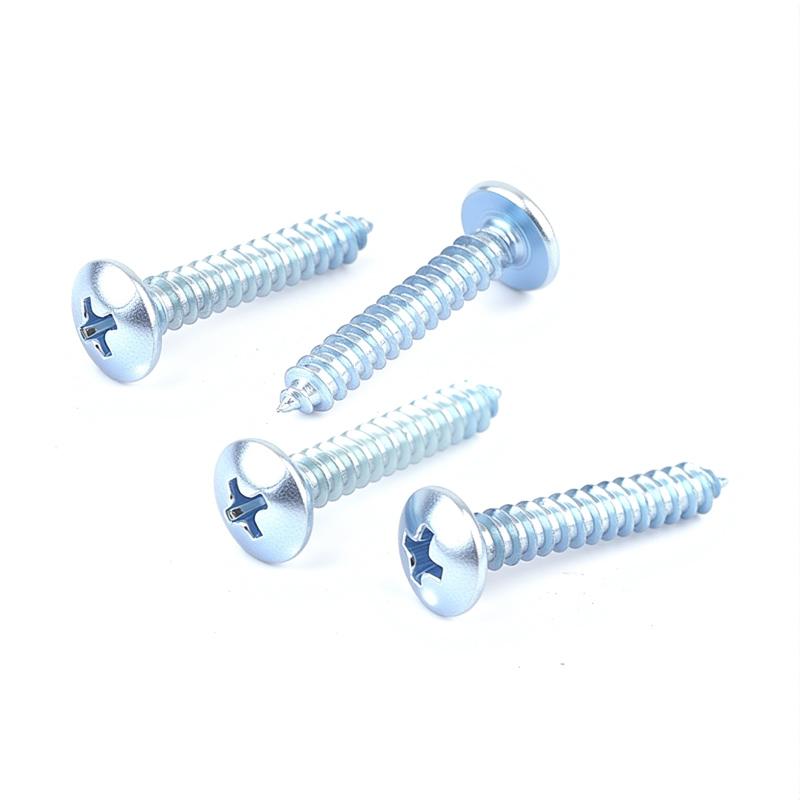

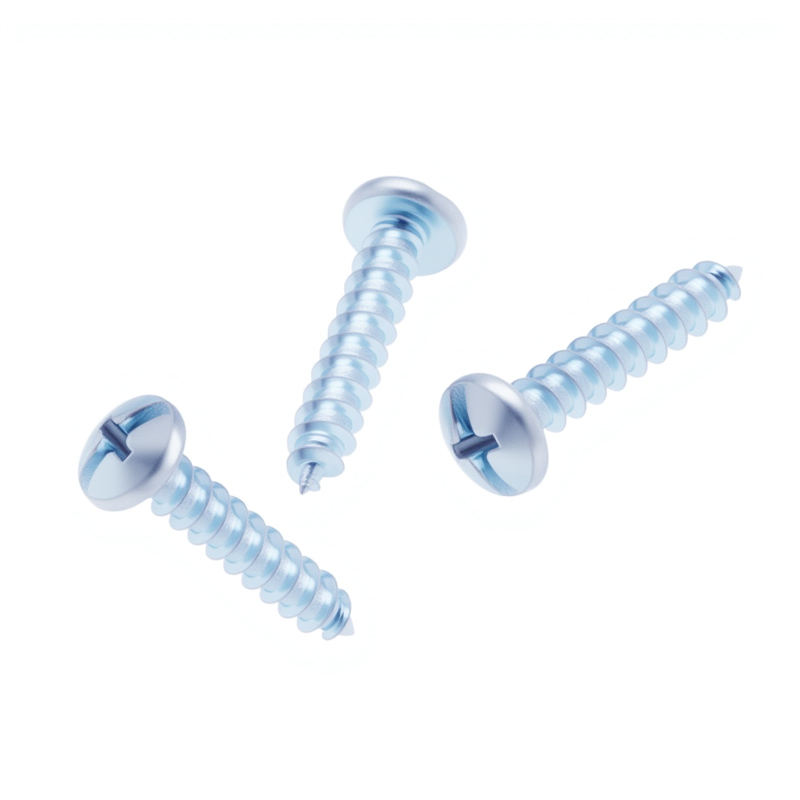

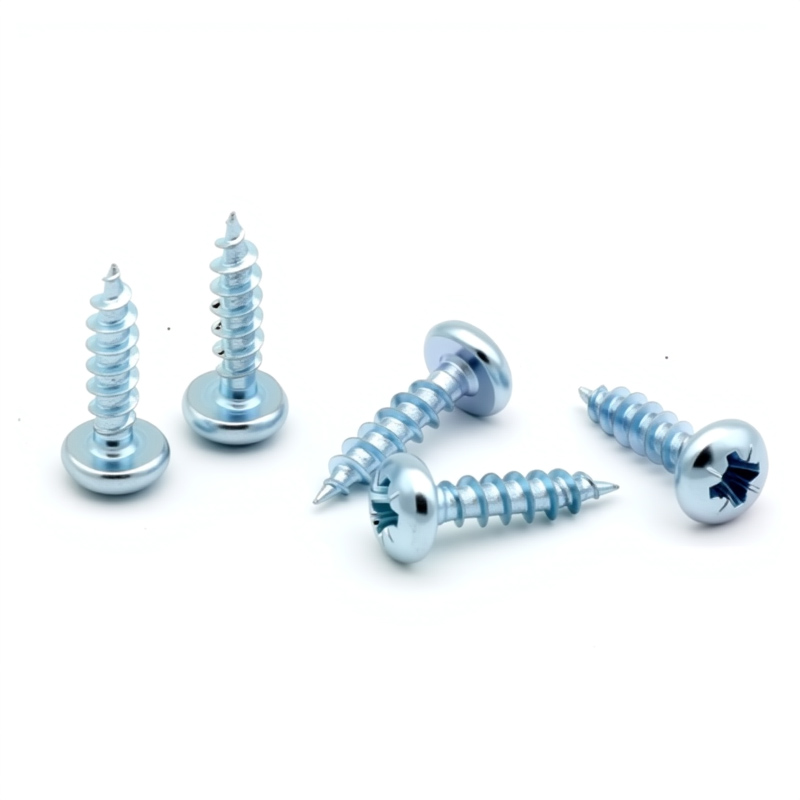

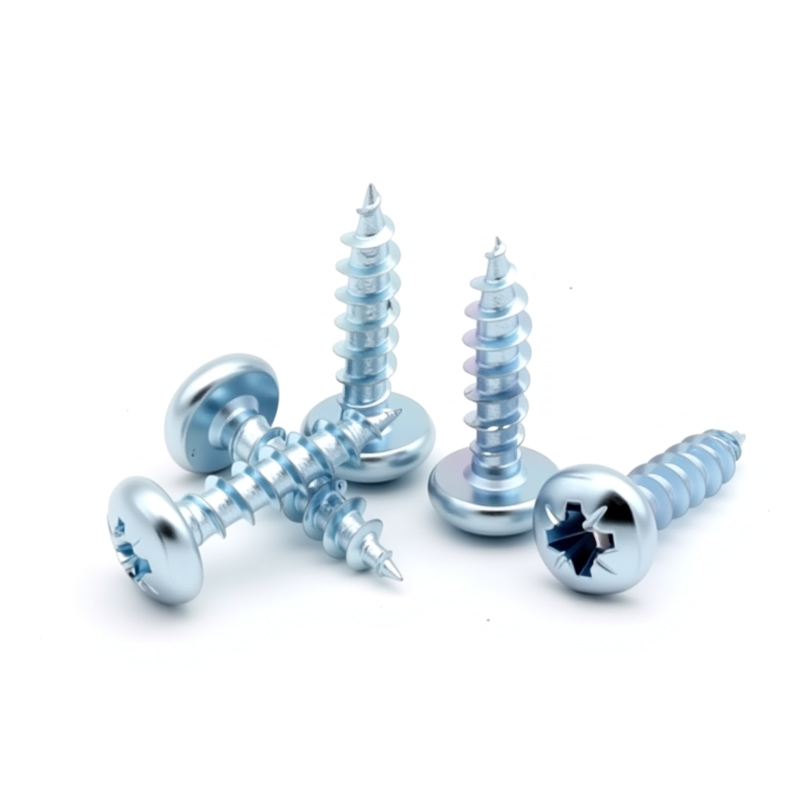

White Zinc Pan Head Self Tapping Screw Manufacturer

Product Introduction

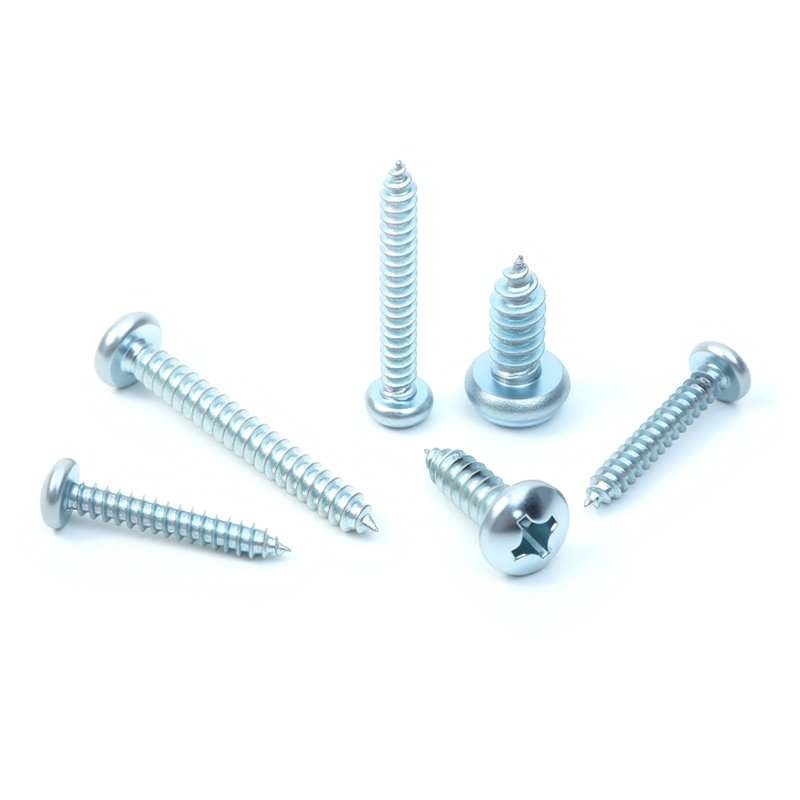

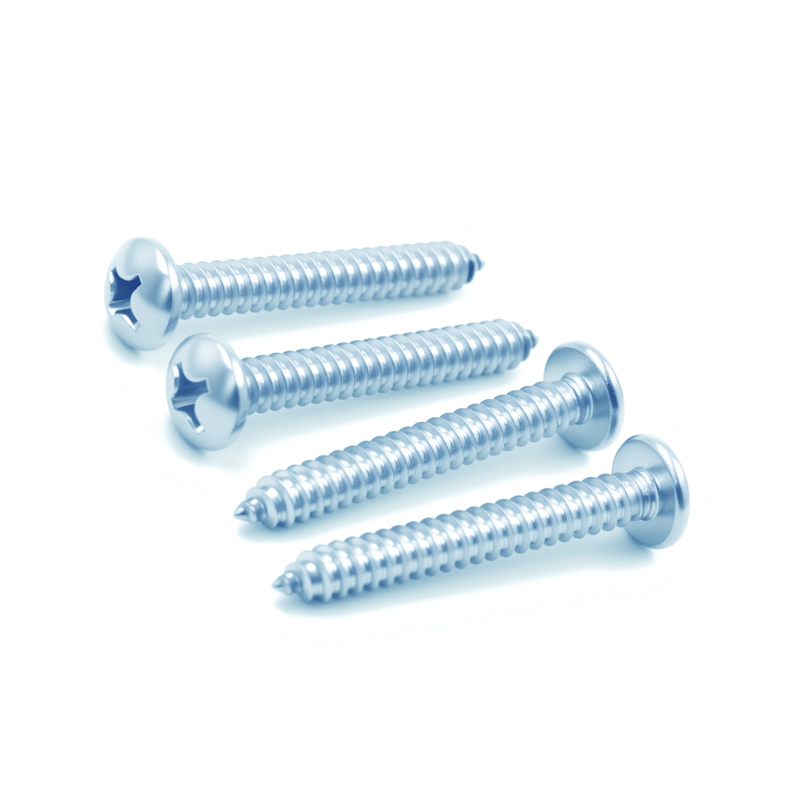

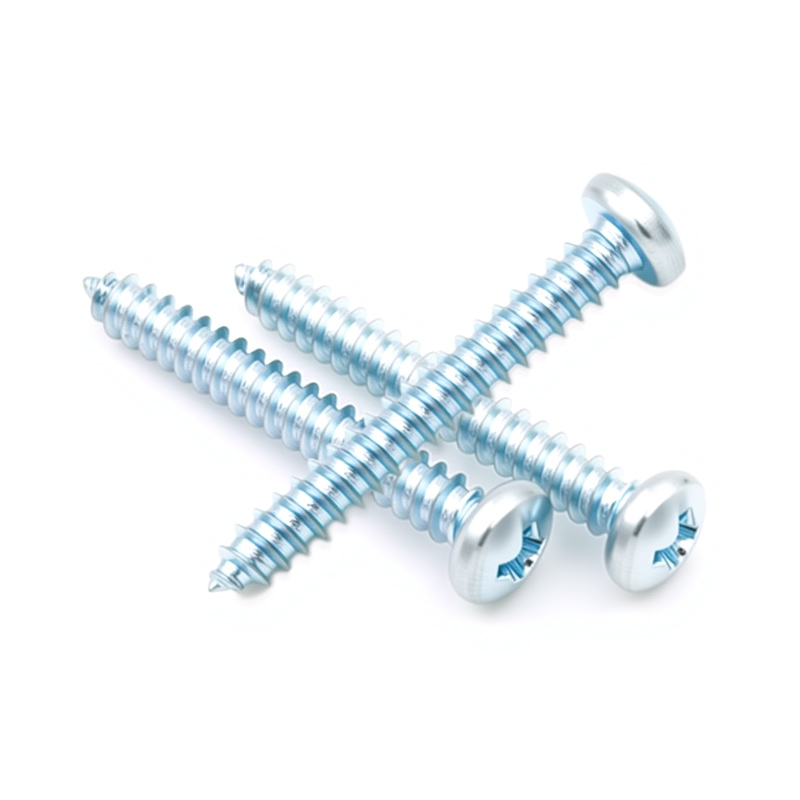

The Pan Head Self-Tapping Screw is a high-performance fastener engineered for efficient and secure assembly of components to pre-drilled or pre-punched metal substrates. It combines the thread-forming capability of a self-tapping design with the functional advantages of a pan head, creating a versatile solution for a wide range of industrial and construction applications. This fastener eliminates the need for a separate tapping operation, streamlining the assembly process.

Product Specifications

• Material: Carbon Steel (Grade C1022A or equivalent), heat-treated for optimal strength and durability.

• Finish / Coating: Standard finishes include Zinc Plated and Black Phosphate. Enhanced corrosion-resistant coatings such as hot-dip galvanized are available for severe environments.

• Corrosion Resistance: Base coatings protect against rust in standard interior conditions; optional coatings offer superior protection for extended outdoor or harsh industrial exposure.

• Head Style: Pan Head with a flat bearing surface and a low, rounded dome.

• Drive Type: Available in Phillips #2, Pozidriv #2, and Hex Washer Head configurations to suit various tooling preferences.

• Thread Type: Sharp, spaced machine screw threads designed for effective cutting and forming of mating threads in metal.

• Point Style: Sharp gimlet or cone point for easy alignment and starting in pre-prepared holes.

• Shank: Typically fully threaded.

• Standard Diameters: Common sizes include #6, #8, and #10 (approximate metric equivalents: 3.5mm, 4.2mm, 4.8mm).

• Standard Lengths: Range from 1/4" (6mm) to 2" (50mm), with custom lengths available upon request.

• Standards: Manufactured to comply with relevant industry standards for machine screws and self-tapping fasteners.

Key Features & Benefits

Integrated Thread-Forming Design:
The pan head self tapping screw features precisely cut, hardened threads that create their own clean, secure mating threads within a pre-drilled hole. This eliminates the costly and time-consuming step of pre-tapping, significantly accelerating assembly timelines and reducing labor requirements.

Superior Load Distribution & Surface Mounting:
The pan head provides a wide, flat bearing surface that sits securely atop the workpiece. This design effectively distributes clamping force over a larger area, preventing pull-through, minimizing stress on thin materials, and ensuring a stable, rattle-free connection where a countersunk head is not required.

Optimized for Driving Efficiency & Secure Retention:
Engineered with aggressive thread spacing and paired with a positive-drive recess (Phillips, Pozidriv, or Hex), this screw ensures quick installation with high torque transfer and reduced cam-out risk. The formed threads deliver excellent resistance to vibrational loosening and high pull-out strength.

Durable Construction for Long-Term Reliability:
Manufactured from hardened carbon steel and protected by a corrosion-resistant finish, every pan head self tapping screw is built to maintain its clamping force and mechanical integrity over time, ensuring the longevity and safety of the final assembly.

Typical Applications

• Sheet Metal Fabrication & Enclosures: Assembly of electrical cabinets, control panels, machine guards, and HVAC ductwork where it taps threads into pre-punched holes.

• Metal Bracket & Frame Assembly: Secure attachment of hinges, brackets, and components to pre-drilled structural metal members.

• Automotive & Appliance Manufacturing: Fastening interior panels, trim, and components in vehicles and white goods.

• General Maintenance & Repair (MRO): A versatile solution for field repairs, equipment modifications, and attaching fixtures to metal structures without the need for nuts or tapped holes

Why Choose Our Pan Head Self Tapping Screws?

• Boost Assembly Line Productivity: By integrating drilling and tapping into one fastener, the pan head self tapping screw simplifies processes, cuts cycle times, and lowers total installed cost.

• Ensure Consistent, Reliable Connections: Our stringent manufacturing controls guarantee consistent thread geometry, hardness, and coating, leading to predictable performance and fewer assembly issues.

• Gain Design & Application Flexibility: Available in a comprehensive range of sizes, drives, and finishes, this fastener can be precisely tailored to meet the specific demands of diverse projects, from light-duty electronics to heavy industrial equipment.

Commitment to Quality & Service
